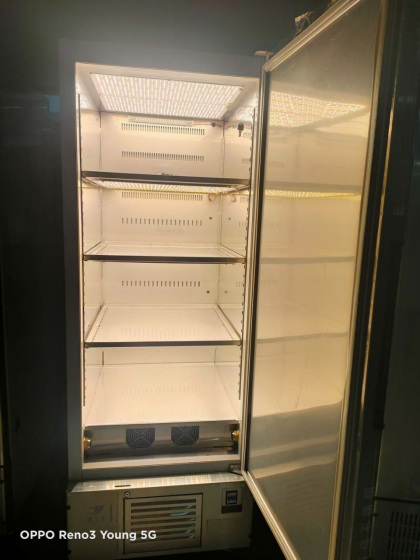

Plant Growth Chamber
Model: 600L
This product is used for plant growth and tissue culture, seed germination, seedling cultivation, and microbial cultivation experiments;  The breeding of insects and small animals provides precise experimental conditions of constant temperature, humidity, and simulated light.
Technical indicators:
*1. Adopting a 32-bit microcomputer controller and a 4.3/7-inch touch screen  Touch switch, easy to operate;  Reject LCD and button modes.
*2. Programmable control mode: The day and night time can be synchronously set according to Beijing time, and the temperature and light intensity parameter values can be controlled in 1-12 working time groups per day;  Refuse to use countdown control.
*3. The illumination on the same plane is uniform and controllable, and each spatial illumination does not interfere with each other. The illumination accuracy is less than 50LX.
*4. Adopt full spectrum cold light source for plant illumination;  Ensure the provision of efficient light sources.  The top lighting unit composed of multiple LED lights is suitable for cultivating plants of various maturity levels;  Efficient growth area to land area ratio;  The light intensity can be flexibly changed;  Top mounted LED light, vertical illumination, more suitable for the growth needs of animals and plants;
*5. The outer shell is made of stainless steel with anti fingerprint surface treatment, and the inner liner is made of mirror stainless steel;  Adjustable shelf height;  The shelf can be directly extracted outward;  The box is made of integral foam, with an insulation layer of more than 5CM, sturdy, durable, generous and reliable.
6. Adopting internationally renowned brand compressors (Embraco) and circulating fans, combined with strict and professional refrigeration processes to ensure the long-term reliability and stability of system quality.
*7. Spectral structure composition: Suitable for plant growth and breeding induction, 730-750nm wavelength (far red light) accounts for 11%, 620-660nm wavelength (red light) accounts for 55%, 530-560nm wavelength (green light) accounts for 18%, 460-490nm (blue light) accounts for 16%. The luminescent visual effect is similar to the solar spectrum, soft and bright, providing a spectral map;  Five types of light, including near and far red light, red light, yellow light, blue light, and white light, can be freely adjusted and combined in intensity without interfering with each other.  Reject non adjustable.
*8. Single board LED module power ≤ 100W, lighting board size ≥ 47 * 38cm, reject tube type light sources, provide LED module samples;  If the voltage of the LED module is lower than 36V, reject 220V input to ensure safety;
*9. Energy saving full spectrum LED flat lighting board, each board consists of 540 LED lights, each chip is less than or equal to 0.2W, using Taiwanese chip technology, with a service life of more than 20000 hours.  Adopting high-density and low-power, it is advantageous for uniform illumination and low heat generation.  Refusing high-power LED chips is not conducive to cooling.
*10. The box is equipped with a built-in ventilation system, which allows for setting the ventilation volume and wind speed on the touch screen;  Fresh air is sent into the incubator through a filter, with a ventilation rate of ≥ ^10m3/h; Refusing external controllers affects the overall aesthetics of the system.
*11. Stepless dimming, uniform light, 3-layer independent lighting control, the first layer can be adjusted within the range of 0-10000LX;  The adjustable range of the second layer is 0-10000LX;  The adjustable range of the third layer is 0-10000LX;  Refuse mechanical adjustment and% adjustment;
12. The light source and casing have a long service life, with LED lifespan exceeding 20000 hours;
13. Ultrasonic humidification, dual head humidification head, adaptive control of humidification amount, humidifier built-in in the incubator air duct to reduce floor space, rejecting external humidifiers;  The service life of the humidifier is greater than 3000 hours.
*14. If the humidifier water tank is larger than 30L, it can be used for more than 20 days to add water each time. Refuse to add water to small tanks for 2-5 days.
*15. The humidity sensor uses anti condensation nanomaterials, which can work normally for a long time at humidity levels above 95%.
16. The volume is ≥ 600L, the external dimensions are 920 * 800 * 1940, and the working room dimensions are 720 * 680 * 1350
*17. Temperature control range: 0-50 ℃, temperature control accuracy is ± 0.5-1.0 ℃, can operate for a long time at 4 ℃, and refuses icing and ice blockage phenomena.
18. Humidity control range: 50-95% RH;  Humidity control accuracy: ± 5-7% RH.
19. Vertical lighting is more suitable for the growth needs of animals and plants;
20. Number of layers: 3 layers, height can be freely adjusted.
21. Humanized design, the touch screen is 1.6m away from the ground to ensure the safety of the operator;
22. Optional mobile app for remote control.  Temperature and humidity settings can be set on the mobile app, and mobile data monitoring can be done;
23. Equipped with a USB interface, it can directly store data to a portable drive, and the incubator can store 100000 pieces of data.  The controller interface can generate historical curve data, which is convenient for users to query, and can also set different operating parameters for querying different time periods.
★ 24. The controller interface has a 3-level password lock to prevent others from making data changes.  It has traceability and has administrator, user, and guest accounts. Administrators can add and delete user and guest accounts, as well as record the time when users and guest accounts modify parameters.  Historical data can be exported in PDF format to prevent parameter falsification.
25. Alarm: The box alarm is divided into visual alarm (color alarm light) and sound alarm (alarm bell). Temperature, humidity, and humidifier water shortage alarms can be set, and temperature and humidity process tracking alarms can be set to closely monitor temperature and humidity changes. The box stores the latest 20 or more alarm information.
★ 26. Ensure that the product is easy to update and expand in the early and later stages. The manufacturer must have independent software development capabilities and provide software copyright certificates (proof materials need to be uploaded).
27. With a one-year warranty, the manufacturer has independent and authorized after-sales repair points and parts warehouses in the local area, providing fast and professional response.
